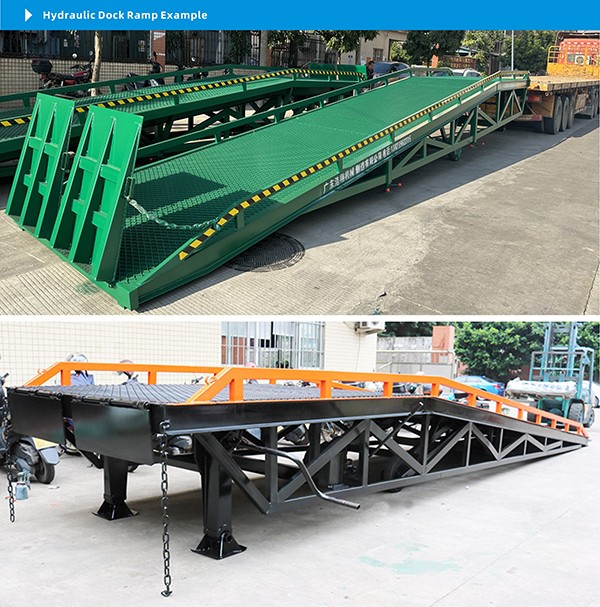

Hydraulic Dock Ramp — Effortless Loading and Unloading with Advanced Hydraulic Power
Load Capacity: 10 -20 Tons
Platform Length: 10-11 Meters
Platform Width: 2.2 Meters
Height Adjustment Range: 1.2–1.68 Meters
Hydraulic System: Manual Pump
The Hydraulic Dock Ramp is an advanced loading solution designed to make cargo transfer between trucks and warehouses easier, safer, and more efficient. Unlike manual ramps, this model is equipped with a powerful hydraulic system that allows smooth height adjustment to match various truck or container heights effortlessly. Operators can easily lift or lower the ramp with minimal manual effort, drastically reducing labor intensity and improving overall loading speed. Constructed with high-strength steel and reinforced frames, the ramp boasts excellent load-bearing capacity and durability, capable of supporting heavy-duty forklifts and fully loaded pallets. The surface features a non-slip patterned steel plate, providing maximum traction even in rainy or slippery environments. This ensures that forklifts can move safely and stably without the risk of skidding or cargo shifting. Whether in logistics centers, manufacturing plants, or distribution hubs, this hydraulic dock ramp is engineered to optimize operational workflows and enhance workplace safety.
Technical Parameter | ||||||||
Specifications, sizes and colors can be customized according to customer requirements | ||||||||
Model | Load Capacity(t) | Total length(m) | Platform surface(mm) | Slope surface(mm) | Front slat(mm) | Rear flap(mm) | Width(mm) | Lifting height(mm) |

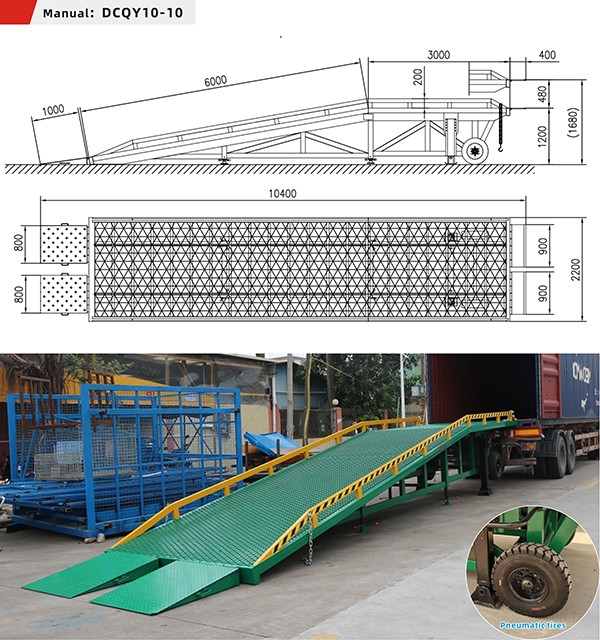

DCQH10-10 | 10 | 10 | 3000 | 6000 | 400 | 1000 | 2200 | 1200-1680 |
DCQH12-11 | 12 | 10 | 3000 | 7000 | 400 | 1000 | 2200 | 1200-1680 |
DCQH15-12 | 15 | 11 | 3000 | 8000 | 400 | 1000 | 2200 | 1200-1680 |
DCQH20-13 | 20 | 12 | 3000 | 9000 | 400 | 1000 | 2200 | 1200-1680 |
DCQH10-16 | 10 | 13 | 3000 | 12000 | 400 | 1000 | 2200 | 1200-1680 |
